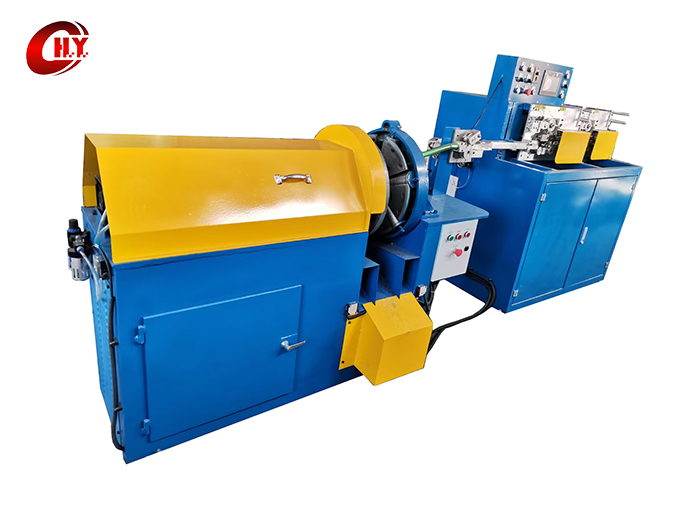

Automatic Weaving Machine for Clutch Facings

  • Product Introduction:

    This clutch facing weaving machine is specially suitable for weaving process for clutch facings.

  • Advantages:
    This automatic weighing and feeding weaving machine is a combined machine of weighing feeding machine and weaving machine, which realizes the automatic production. The machine processing is smooth, and it’s not easy to block the line. Adopt the Delta PLC control system,the operation is simple. One operator can operate four machines at the same time.

Product Introduction

Min. internal diameter of product size: >100 (Must be greater than 100).

Width of weaving product: 20 ~ 110 mm.

Line width and diameter: line width ≤ 14 mm, diameter Ф 10mm.

Weaving machine speed: The maximum speed is 200RPM, and the weaving machine speed can be adjusted through touch screen.

Production efficiency: 230-445mm about 650 pieces (8 hours) ,180-110mm 2200 pieces (8 hours).

Line width and diameter: Line width ≤ 14 mm, Diameter Ф 10mm.

Overall dimension: Weaving machine: 1750 × 700 × 1260mm 750kg.

Weighing feeder: 1500x 900X 1600mm 400kg.

Compressed air: 0.4 ~ 0.6 MPa.

Total power: Rated power: 6KW.

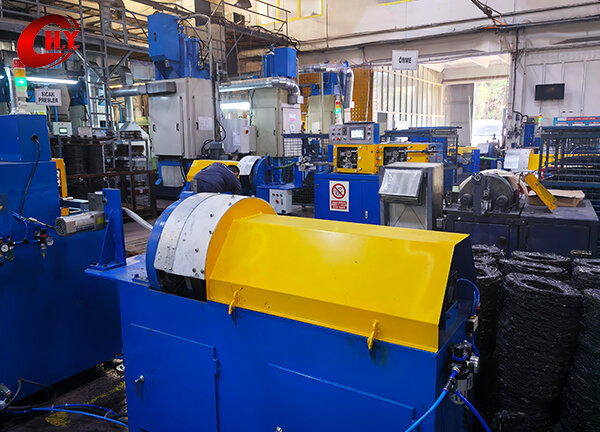

Automatic-Weaving-Machine-for-Clutch-Facings03

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01High performance auto clutch friction lining machine.
  • 02Heavy duty truck clutch facing machie.
  • 03Automatic clutch plate winding machine.
  • 04Automatic clutch facing production line machines.
  • 05Automatic clutch facing weaving machine.
  • 06Automatic clutch facing manufacturing machine.
  • 07Automatic clutch facing processing machine.
  • 08Producing machines for clutch facing machine.
