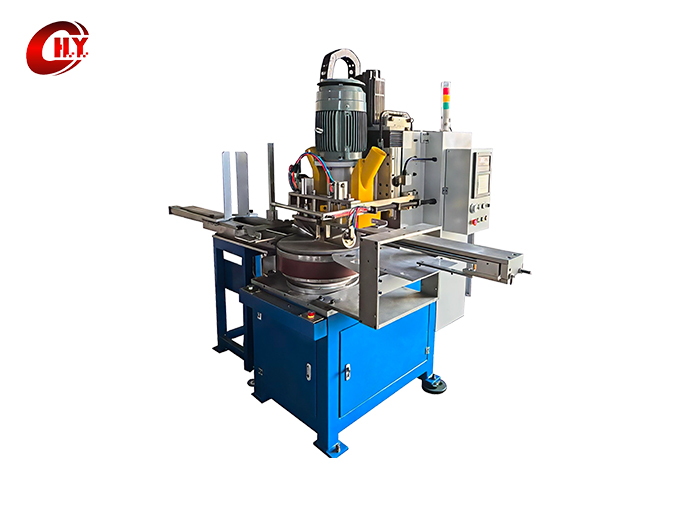

Surface Grinding Machine for Clutch Facings

  • Product Introduction:

    This clutch facing grinding machine is used for the surface grinding of clutch facing plates for passenger cars, trucks and construction machinery. It eliminates warping, ripples and uneven defects, precisely grind the thickness to ensure the consistency of product flatness.

  • Advantages:
    The structure of clutch facing grinding machine is composed of: CNC sliding table, high-speed power head, feeding device, dust collection device, CNC system control. Advantages: Its flatness and parallelism reach the micron level, which is much higher than ordinary abrasive belt grinding and manual polishing. High efficiency, suitable for mass production. High degree of automation, reducing manual intervention, greatly improving the good product rate, and the comprehensive processing cost is significantly lower than that of traditional process.

Product Introduction

Spindle Speed Range: 2800 r.

Machine Controller: Numerical Control System.

Spindle Power: 7.5KW Spindle Motor.

Servo Motor: Servo Drive Kit.

Grinding Size Range:Maximum outer diameter of product: 430mm.

Minimum outer diameter: 200mm.

Grinding Machine Power Head: High-speed Power Head.

Machine Capacity: 8 hours, about 1000 pieces.

Feeding: Automatic feeding and automatic unloading.

Total Power: 9KW.

Size: 2300*1200*2400mm (L*W*H).

Weight: about 1500KG.

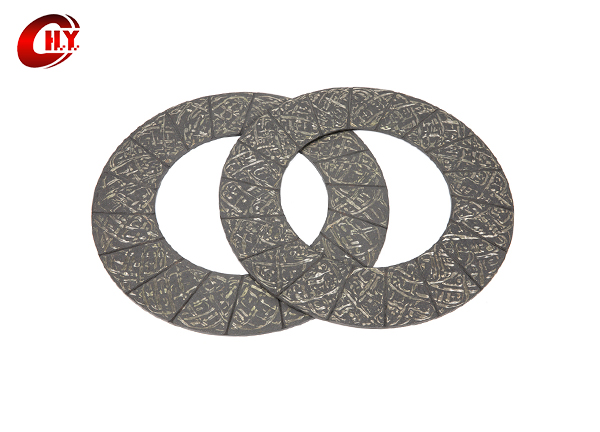

Surface-Grinding–Machine-for-Clutch-Facings03

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile Brake pad production line machines.
  • 02Automatic Brake lining production line machines.
  • 03Automatic Brake shoe production line machines.
  • 04Automatic Clutch facing production line machines.
  • 05Brake pad steel backing plate machines.
  • 06Truck brake pad producing machines.
  • 07Motorcycle brake pad processing machines.
  • 08Producing machines for C.V. Brake linings.
