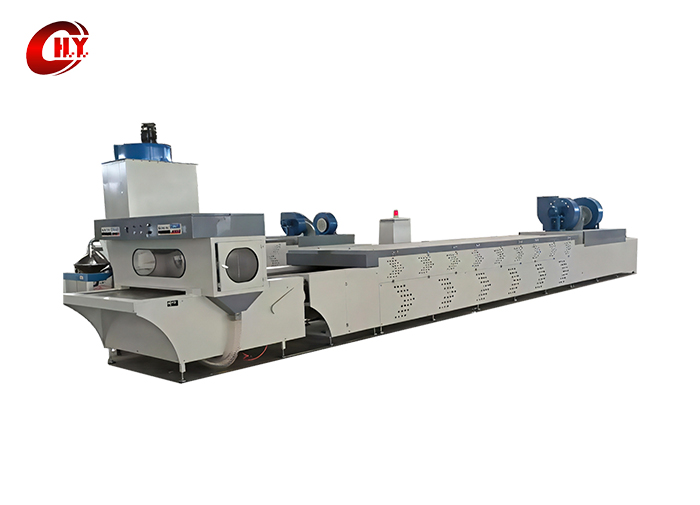

Automatic Powder Coating Line for Brake Pads

  • Product Introduction:

    This automatic powder coating line is mainly used for spraying protective coatings on the surface of brake pads. After drying and curing, it improves rust resistance, wear resistance, and high-temperature resistance. At the same time, it improves the appearance and extends the service life of brake pads.

  • Advantages:
    Electrostatic spraying: Using electrostatic adsorption, after the coating particles are charged, they are uniformly adsorbed on the surface of brake pads, resulting in the smooth coating and saving coating materials. Drying and curing: The sprayed brake pads are sent into the drying and curing oven via the conveyor chain, allowing the coating resin to cross-link and cure, forming the strong and dense protective coating.Cooling and discharging: After curing is completed, forced cooling is carried out to obtain the finished brake pads, which then enter the next processing procedure.

Product Introduction

Size of spraying section: 800*1550*900mm (L*W*H)

Electrostatic powder spraying guns: 2 sets Gun power:0.04KW

Size of conductive conveyor belt: 2100*850mm*800mm (L*W*H)

Heating curing furnace(Drying section): 10000*1050*1200mm (L*W*H)

Heating power: 63KW Heating time: 5-10 minutes

Cooling section: 4500*1090*1400mm

Centrifugal fans: 2 sets, Power: 2.2KW * 2

Control cabinet: 600*400*1600mm Accuracy: ± 2 degrees

Powder recovery dust collector: 1100* 730*2500mm (Including the fan height)

Fan power: 3KW, Fan air volume: 3000m³／h

Size: 18 meters Total power: about 70KW

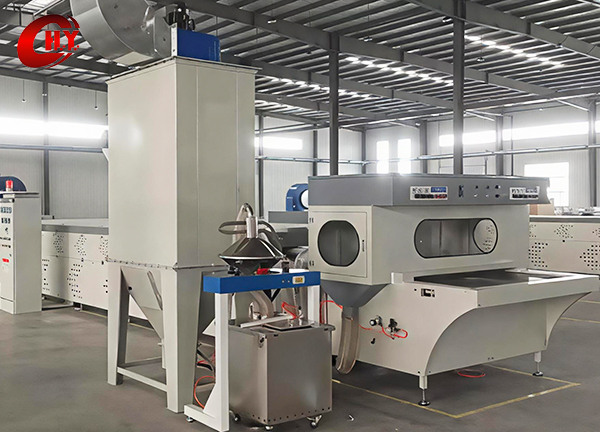

Automatic-Powder-Coating-Line-for-Brake-Pads03

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Complete brake pad manufacturing solution.
  • 02Automatic brake pad production line machine.
  • 03Automatic brake pad making machine.
  • 04Automatic brake pad machine factory.
  • 05Disc brake pad producing machinery.
  • 06Disc brake pad manufacturering equipment.
  • 07Motorcycle brake pad processing machine.
  • 08Producing machines for P.V. brake pad.
