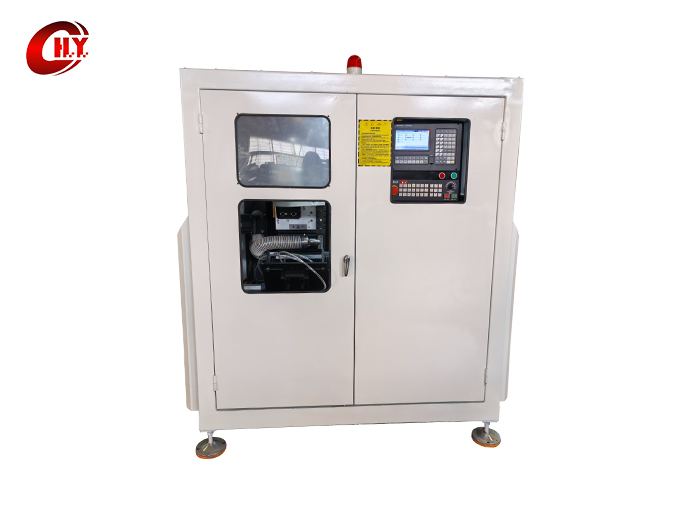

CNC Drilling Machine for C.V Brake Linings

  • Product Introduction:

    This brake lining drilling machine is is suitable for automatic drilling process for various C.V. brake linings.

  • Advantages:
    The CNC drilling machine adopts the advanced CNC control system to greatly improve the machining accuracy, which has the characteristics of automatic indexing, automatic rotation, automatic drilling and automatic loading & unloading the products etc. The clamping fixture can be changed simply and conveniently. One person can operate three to four machines at the same time, save labors and improve the production efficiency.

Product Introduction

Processing range: Radius: R142-R245mm, Max. Width: 225mm.

Processing accuracy: 5-10mm (National standard is 15 - 30mm)

Minimum Intermediate Distance of Drilling Holes: 50mm

Max.rotating speed of main spindle: 2800rpm

Variable Speed Method: Stepless speed change of Frequency Converter

Power of main spindle: 1.5kw* 2

Power of Servo motor: 1.5-2.2kw

Power of Stepper motor: 1.5-2.2kw

Maximum travel of feeding axes:

A and C axes (lateral movement): 250mm;

X and Y axes (longitudinal movement): 150mm;

B (rotation) axis: 180 degrees.

Overall dimension: 1580mm×1150mm×1900mm (L*W*H)

Weight: about 1800kg

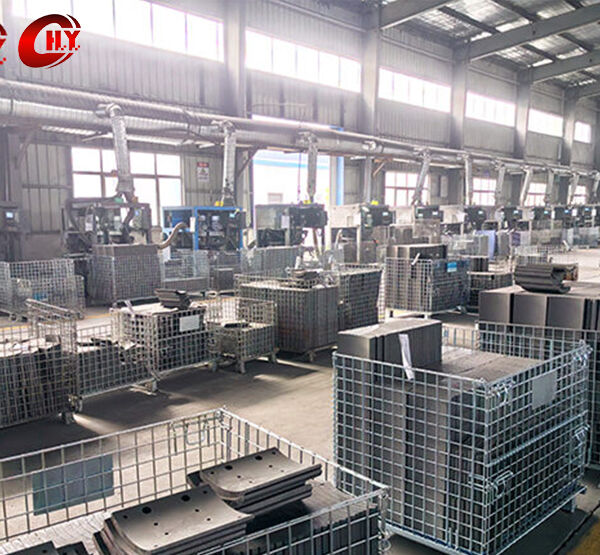

CNC-Drilling-Machine-for-C.V-Brake-Linings04

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile Brake pad production line machines.
  • 02Automatic Brake lining production line machines.
  • 03Automatic Brake shoe production line machines.
  • 04Automatic Clutch facing production line machines.
  • 05Brake pad steel backing plate machines.
  • 06Truck brake pad producing machines.
  • 07Motorcycle brake pad processing machines.
  • 08Producing machines for C.V. Brake linings.
