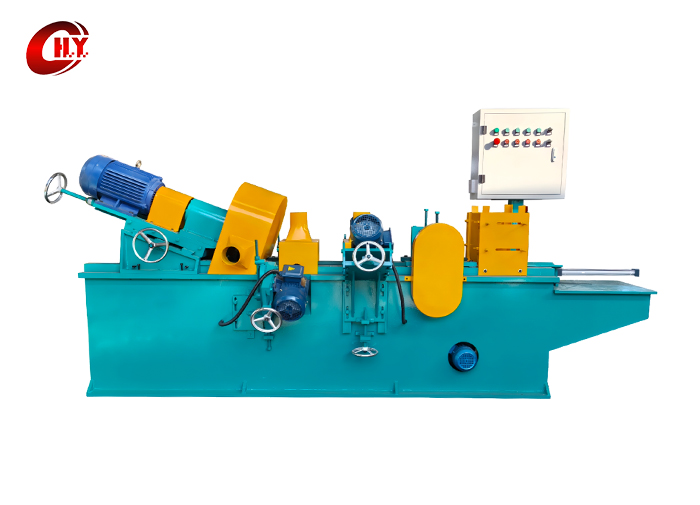

Combined Grinding Machine for C.V. Brake Lining

  • Product Introduction:

    This brake lining grinding machine is suitable for one-time grinding processing of trimming, chamfering, and inner- arc grinding for c.v.brake lining.

  • Advantages:
    This combined grinding machine adopts integral inlaid guide rail with cover plate pressure-guided type, high precision and good guidance. It uses the pneumatic feeding method for continuous feeding, which is easy to adjust, saves labor, and has high production efficiency. Adopts the diamond grinding wheel, ensuring stable dimensions, good wear resistance, and high grinding precision etc.

Product Introduction

Processing range: Inner radius R135-R210mm

Brake lining width: 80mm-260mm

Inner- arc motor: 7.5kw

Chamfering motor: 2.2kw

Edge trimming motor: 2.2kw

Feeding motor: 0.75kw

Output per shift: 4000 pieces /8 hours

Size: 3500mm×1300mm×1500mm

Weight: about 2000 kg

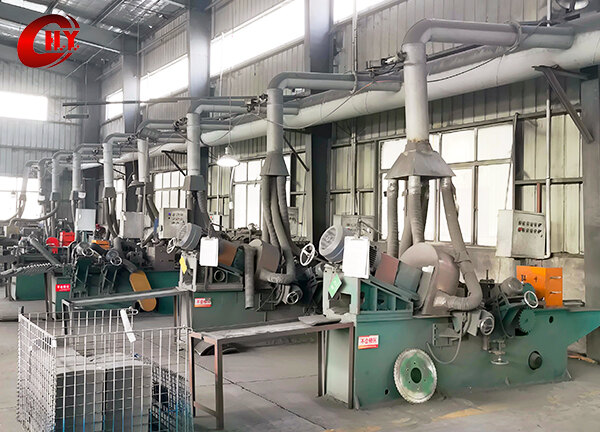

Combined-Grinding-Machine-for-C.V.-Brake-Lining03

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile Brake pad production line machines.
  • 02Automatic Brake lining production line machines.
  • 03Automatic Brake shoe production line machines.
  • 04Automatic Clutch facing production line machines.
  • 05Brake pad steel backing plate machines.
  • 06Truck brake pad producing machines.
  • 07Motorcycle brake pad processing machines.
  • 08Producing machines for C.V. Brake linings.
