Hydraulic Press for Brake Lings

  • Product Introduction:

    These series hydraulic pressing machines are used to hot press forming for various C.V. and P.C. brake linings.

  • Advantages:

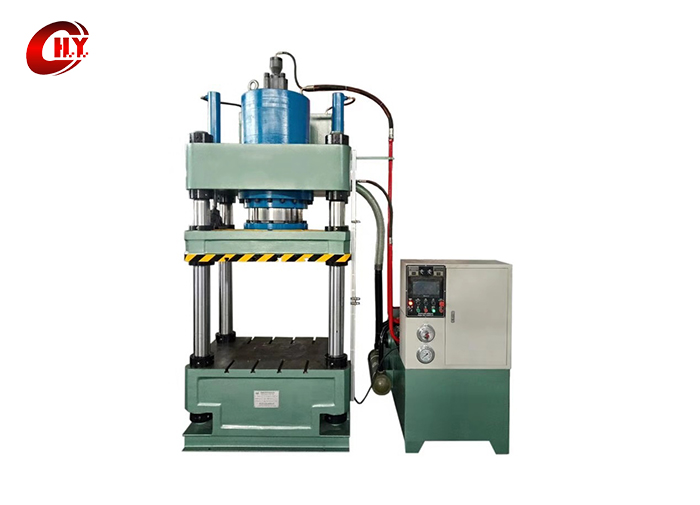

    This product is a special hydraulic press designed for production of C.V. brake linings. The main machine adopts three-beam and four-column structure, the hydraulic system is composed of two-way cartridge valves, and the electronic control system adopts PLC and color touch screen. The electro-hydraulic cooperation can complete three process modes: constant pressure, constant stroke, and timing.The working pressure and stroke range can be adjusted within the set range. It is equipped with mold temperature control system. It adopts centralized button control and has two operation modes: manual and automatic. The electrical cabinet is in a sealed cabinet form, with the touch screen placed inside to prevent dust from entering, allowing real-time viewing of machine’s working status at any time.

Product Introduction

Model: HYPS02

Nominal force: 3150KN

Max. working pressure of Hydraulic: 25MPa

Max. working stroke of Main cylinder: 600mm

Maximum opening size: 1150mm

Effective size of workbench: Front - back 1000mm; Left - right 1000mm

Speed of Slider: Fast downward 80mm/s;Working speed 8mm/s; Return speed 90mm/s

The height from workbench to ground: 650mm

Total power: 11kw

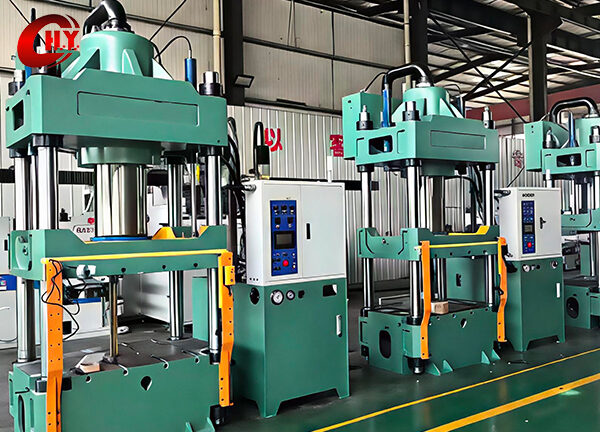

Hydraulic-Press-for-Brake-Lings03

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile Brake pad production line machines.
  • 02Automatic Brake lining production line machines.
  • 03Automatic Brake shoe production line machines.
  • 04Automatic Clutch facing production line machines.
  • 05Brake pad steel backing plate machines.
  • 06Truck brake pad producing machines.
  • 07Motorcycle brake pad processing machines.
  • 08Producing machines for C.V. Brake linings.
