High Precision Brake Shoe Rolling Forming Machine

  • Product Introduction:

    This bending machine is used for processing brake shoe panels. During the production process, the brake shoe panels are cold-worked through rolling to form the required arc shape.

  • Advantages:
    This machine adopts the steel roller for upper roll and steel roller for lower roll. The plate is placed between the two rolls, and the distance between them is adjusted to make it contact – pressurize – deform. The plate then undergoes local deformation, driving the two rolls to rotate, so that the plate is continuously bent and rolled into shape.This machine can achieve one-time forming, with high production efficiency, high geometric accuracy of products, good surface quality, simple structure with the minimum number of rolls, and easy operation etc.

Product Introduction

Width of rolled workpiece: 250 mm;

Thickness of rolled plate: 5mm;

Range of workpiece diameter: customized according to customer needs;

Material of processed plate: Q235;

Yield limit of processed plate: 345MPa;

Input voltage: three-phase four-wire AC, Working voltage: 380V/50Hz (Customized according to the voltage of customer's country);

Pressurization method: lead screw and nut;

Pressurization pressure: according to actual needs;

Degree of machine automation: manual loading, automatic rolling, automatic feeding;

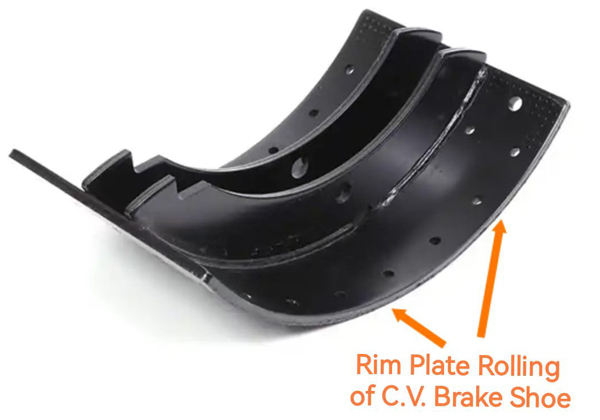

rolling machine

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01C.V. brake shoe production line machine.
  • 02Automatic welding equipment for friction material factory.
  • 03Automatic brake shoe making machine.
  • 04Automatic brake shoe manufacturing equipment.
  • 05CNC controlled brake shoe machine.
  • 06High efficiency truck brake shoe machine.
  • 07Automatic brake shoe processing machine.
  • 08Producing machines for c.v. brake shoe.
