Out-arc Grinding Machine for C.V. Brake Shoe

  • Product Introduction:

    This brake shoe grinding machine is suitable for outer arc grinding processing of medium and heavy-duty vehicles brake shoes and brake shoe assembly.

  • Advantages:
    Adopting PLC programming control and touch screen operation, the rough grinding is processed by horizontal grinding wheel, and the fine grinding is completed with vertical grinding wheel. It ensures that the surface of processed products have no center concave defect and the circular runout is not more than 0.1mm.Realized the hydraulic automation operation. Products with large machining allowance can be finished through rough grinding and fine grinding at one time; Smooth grinding texture and high machining precision.

Product Introduction

Grinding Head Motor: 11kw 1390r/min/ unit; 7.5kw 1390 r/min/ unit.

Grinding Wheel Diameter: Horizontal grinding wheel: ∮600mm one piece.

Vertical grinding wheel: ∮200mm×225mm One piece.

Feeding Motor: 0.55kw 1390r/min.

Hydraulic Motor: 1.5kw 1440r/min.

Spindle Feeding: Steplessly adjustable.

Processing Cycle Time: 70 seconds per set.

Grinding Range: Product Width: 80-220mm; Inner arc of product: R150-R230mm.

Overall Dimensions: 2000mm×2100mm×2000mm.

Weight: about 2500kg.

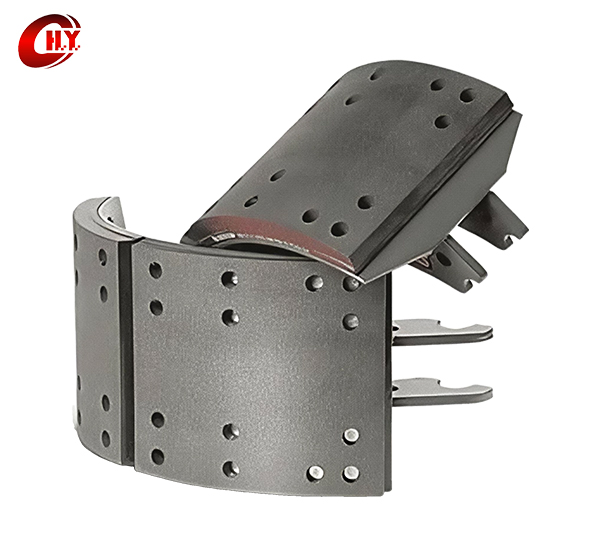

Out-arc-Grinding-Machine-for-C.V.-Brake-Shoe03

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile c.v.brake shoe making machine.
  • 02Automatic brake shoe processing machine.
  • 03Automatic brake shoe production line machine.
  • 04Automatic brake shoe manufacturing equipment.
  • 05Drum brake shoe manufacturing process.
  • 06CNC brake shoe producing machine.
  • 07Automatic brake shoe linings grinding line.
  • 08Producing machines for c.v. brake shoe.
