Fully Automatic Drilling Machine for Loog Arc Brake Linings

  • Product Introduction:

    Apply to the drilling process of complex hole positions for various long – arc brake linings.

  • Advantages:
    High automation and processing precision, leading to higher production efficiency. Innovations and breakthroughs in automatic feeding and clamping methods ensure accurate positioning during processing.Adopting modular design, the drilling fixture can be changed quickly and conveniently. Saving labor costs ，one person can operate 2 to 3 machines.

Product Introduction

CNC System:5-axis CNC system.

Servo Motor:1.5KW, 110-type servo motor.

Spindle Motor:2.2KW.

Total Power:Approximately 9KW.

Overall Dimensions:1720mm (L) × 1350mm (W) × 1800mm (H) (including enclosure).

Processing Range:Inner arc radius: R140-R190mm; Width of lining: 60mm-130mm; Minimum hole spacing: 42mm; Inner arc included angle: 120°.

Processing Accuracy:Hole spacing: ±0.1mm; Hole depth: ±0.1mm; Angle between two holes: ±0.05° .

Production Capacity:1500-1600 pieces/8h.

Total Weight:Approximately 1900kg.

4

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01CNC brake lining production line machine.
  • 02Automatic brake lining making machine.
  • 03Automatic c.v.brake lining machine plant.
  • 04Drum brake linings manufacture Machinery.
  • 05Truck brake lining manufacturering equipment.
  • 06Automatic brake lining producing machine.
  • 07Commercial Vehicle brake lining processing machine.
  • 08Producing machines for C.V. Brake lining.

Related Products

Hydraulic Press for Brake Linings

Hydraulic Press for Brake Linings

These series hydraulic pressing machines are used to hot press forming for various C.V. and P.C. brake linings.

Combined Grinding Machine for C.V. Brake Lining

Combined Grinding Machine for C.V. Brake Lining

This brake lining grinding machine is suitable for one-time grinding processing of trimming, chamfering, and inner- arc grinding for c.v.brake lining.

Out-arc Grinding Machine for Brake Linings

Out-arc Grinding Machine for Brake Linings

This outside grinding machine for brake lining is used to the outer-arc grinding process for C.V. brake linings.

CNC Drilling Machine for C.V Brake Linings

CNC Drilling Machine for C.V Brake Linings

This brake lining drilling machine is is suitable for automatic drilling process for various C.V. brake linings.

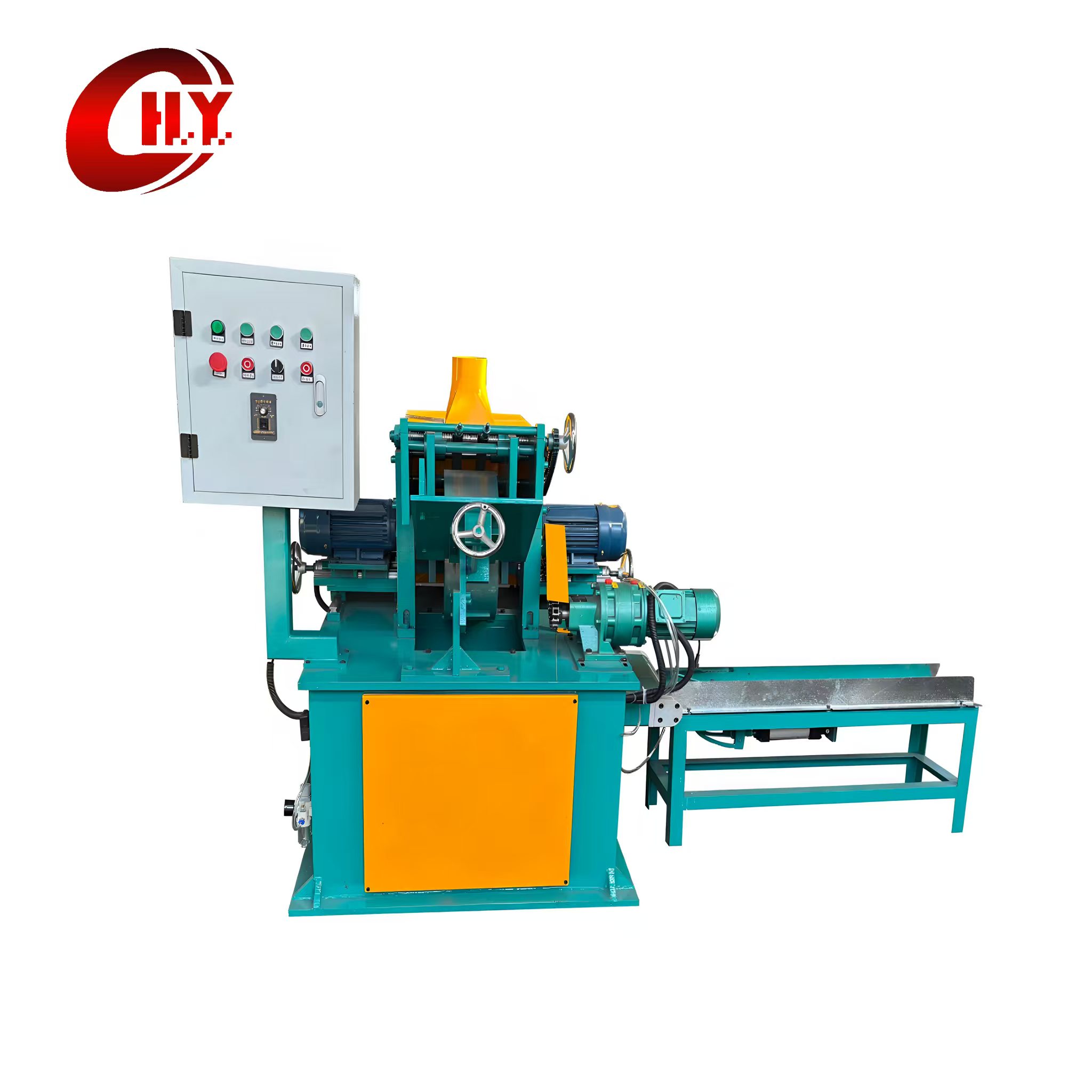

Limited Line Grinder Machine for Brake Linings
