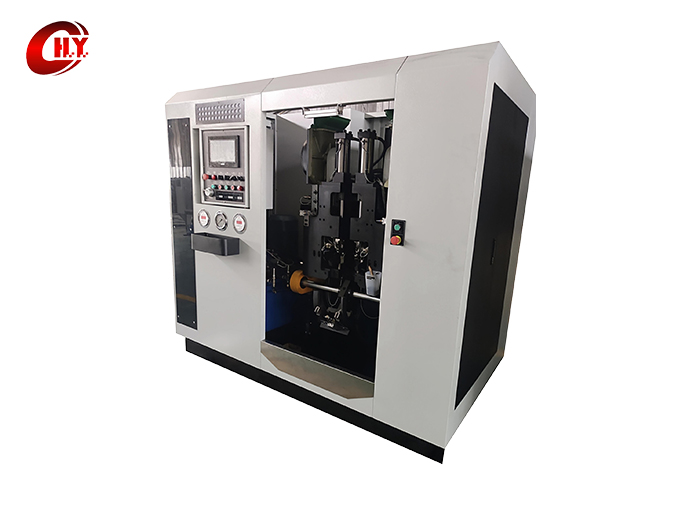

Automatic Riveting Machine

  • Product Introduction:

    This brake shoe riveting machine is suitable for various riveting processes of casting and welding brake shoes and brake linings.

  • Advantages:
    This riveting machine can realize automatic rivet feeding, automatic rotation and automatic indexing for both heads simultaneously. The independent hydraulic cylinders of both heads perform automatic riveting following the rotation angle. The riveting quality is controlled by hydraulic pressure, which is regulated by high-precision sensor. When the set pressure value is reached, it automatically cycles to the next riveting action. The pressure of each riveting hole is automatically and intuitively displayed, and the data can be stored. It adopts advanced infrared sensors to control the rivet conveying action, ensuring stable and reliable riveting quality.It is suitable for C.V. brake shoes with 2-4 rows of hole spacing available in the current market, reducing labor and workers’ labor intensity.

Product Introduction

Maximum outer arc radius of riveted shoe: R215mm.

Minimum outer arc radius: R165mm.

Processing width range: 150mm--222mm.

Minimum adjacent angle: arbitrary.

Minimum distance between holes: 72mm.

Maximum distance between holes: 185mm.

Riveting force: 0--2000N, (related to the diameter of rivet).

Riveting speed: The net riveting time per hole is 1.5-1.8 seconds/hole (related to the arrangement of hole positions).

Hydraulic station motor power: 5.5KW, pressure: 0-12Mpa.

Production efficiency: Time for riveting a single brake shoe: 40-50 seconds.

Overall dimensions: 2310*1630*2170mm.

Weight: 1990kg.

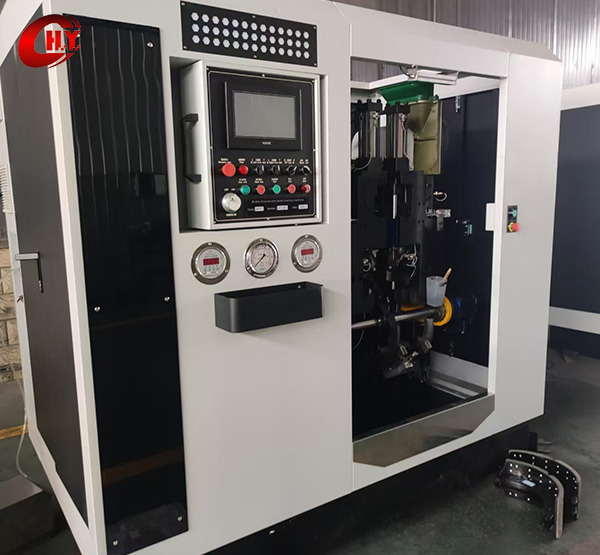

Automatic-Riveting-Machine03

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01C.V. brake shoe production line machine.
  • 02Automatic brake shoe making machine.
  • 03Automatic brake shoe manufacturing equipment.
  • 04Automatic brake shoe manufacturing process.
  • 05Automatic heavy duty truck brake shoe factory.
  • 06Energy-saving truck brake shoe machine.
  • 07C.V. brake shoe processing machines.
  • 08Producing machines for c.v.brake shoe.
