Welding Machine for C.V.Brake Shoe

  • Product Introduction:

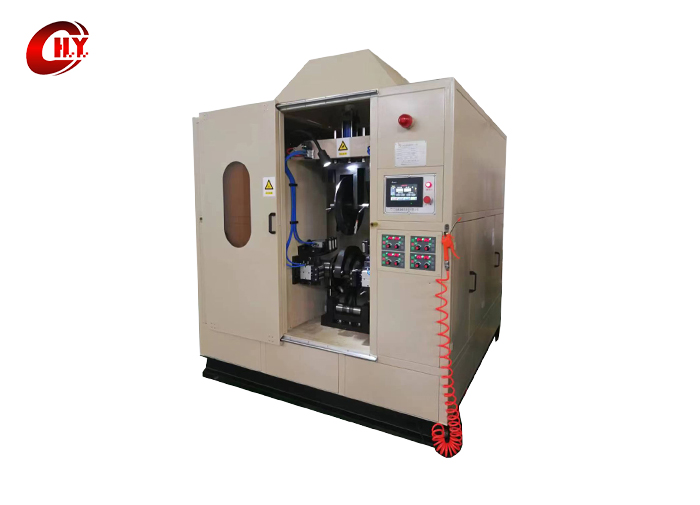

    This brake shoe welding machine is mainly used for welding brake shoes in automotive braking systems. It firmly connects the brake shoe panel and the rib plate through welding technology, ensuring the safety and reliability of structural strength of brake shoe under high-pressure and high-temperature working conditions.

  • Advantages:
    It has the feature of high degree of automation. The brake shoe welder integrates the PLC + touch screen control system, supporting multi-station automatic clamping, position changing, welding, and unloading, with stable welding rhythm.To meet the demand for multi-convex point welding of brake shoes, the machine can adjust the number of welding points, energy parameters, and upsetting pressure programs, improving welding reliability.The synchronous control of two machines ensures the consistency of multi-point welding, enabling the traditional three processes (plug welding, fillet welding, and position-changing welding) to be completed in one go, significantly improving efficiency.The equipment has optimized the feeding method of panels. The clamping devices for panels on both sides are adjustable structures, which is beneficial for adjusting the symmetry.

Product Introduction

Diameter of welding wire used: Solid core 1.0 / 1.2 / 1.6.

Rated welding current (single machine): 500A.

Current regulation range: 60-550A.

Rated welding voltage (Single machine): 39V.

Spindle revolution: 20-1000mm/min.

Hydraulic system pressure: 7MPA.

Number of welding guns: 4 pieces.

Range of welded workpieces: Width 219mm, customized.

Diameter:406mm Customized.

Workpiece jacking: Hydraulic.

Rated welding capacity (single machine): 23.3KVA.

Workpiece rotation angle: 360 degrees.

Welding method: 20%AR+80%CO2.

Rated load duration factor: 85%.

Efficiency: about 100 seconds each piece.

Size: 2000*2200*2040mm (For reference only).

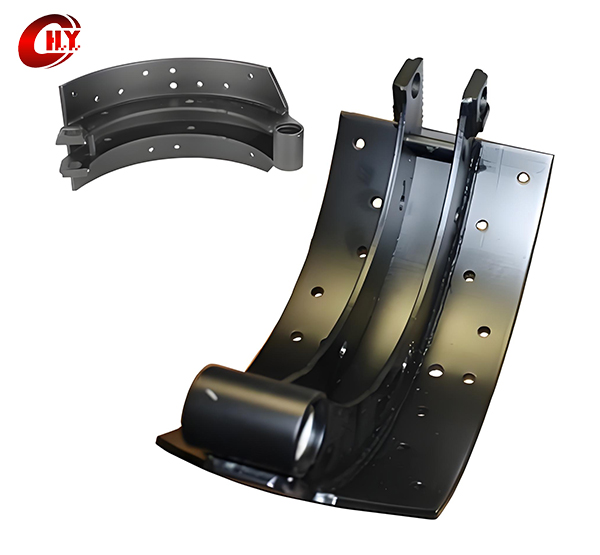

Welding-Machine-for-C.V.Brake-Shoe04

Product Advantages

  • 01Stable & Reliable, Superior Performance.
  • 02High Quality, Cost-effective Price and Stable Quality.
  • 03Efficiency & Convenience,Ultra-high Precision.
  • 04Timely Response, Worry-free After-Sales Service.
  • 05Advanced Technology, Labor Saving.
  • 06Intelligent Control, Fast Changeover.
  • 07Customized Service, Strong Practicality.
  • 08Environmental Protection and Safety, Ultra-low Energy Consumption.

Scope of Application

  • 01Automobile Brake pad production line machines.
  • 02Automatic Brake lining production line machines.
  • 03Automatic Brake shoe production line machines.
  • 04Automatic Clutch facing production line machines.
  • 05Brake pad steel backing plate machines.
  • 06Truck brake pad producing machines.
  • 07Motorcycle brake pad processing machines.
  • 08Producing machines for C.V. Brake linings.
